High Temperature Filter

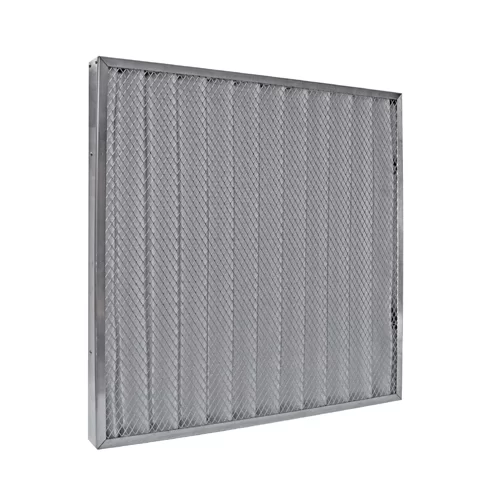

High Temperature Pre-Filter K43
♦ Plead fiber glass media with the sides , it is not easily to be damaged
♦ Can be normally used in a large air volume environment
♦ With the characteristic of non combustible
♦ Large media area
♦ Long life-span
♦ Large air flow & low initial resistance
♦ Max 300℃ resistance
♦ 100% Factory inspection
♦ Can be normally used in a large air volume environment
♦ With the characteristic of non combustible
♦ Large media area
♦ Long life-span
♦ Large air flow & low initial resistance
♦ Max 300℃ resistance
♦ 100% Factory inspection
Product Details
-
Low resistance
-
Low run cost
-
Light weight
-
Convenient installation and replacement
-
Long life-span
-
100% factory inspection
-
Good sealing
-
Super high efficiency
Specification
-
Glass fiber
-
Aluminum (< 200℃), Stainless steel (> 200℃)
-
21 25 46 50 69 80 90 96
-
300℃
-
100%
Product Specification
| Model NO. | Size WxHxD(mm) | Air Flow(m3/h) | Media Area(m2) | Velocity(m/s) |
|---|---|---|---|---|
K43-001 | 594×287×21 | 750 | 0.28 | 1.22 |
| K43-002 | 594×490×21 | 1350 | 0.48 | 1.29 |
| K43-003 | 594×594×21 | 1550 | 0.58 | 1.22 |
| K43-004 | 594×287×46 | 1000 | 0.39 | 1.63 |
| K43-005 | 594×490×46 | 1800 | 0.57 | 1.72 |
| K43-006 | 594×594×46 | 2150 | 0.8 | 1.69 |
