Chemical Filter

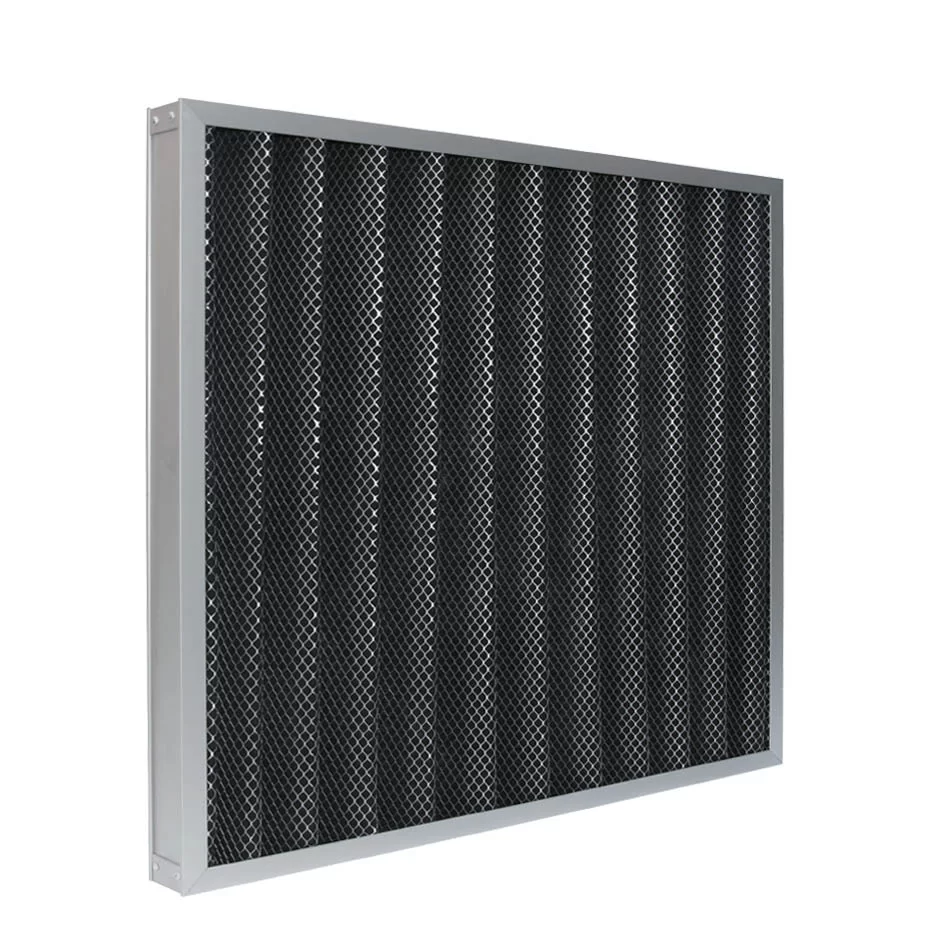

Activated Carbon Pleated Filter K45-C
♦Carbon pleated V cell structure for maximized filteration area
♦Optional combination of synthetic media and activated carbon ensure higher degree of filtration efficiency
♦Low initial pressure drop
♦Optional chemical treated activated carbon for special targeted gas removal
♦Optional combination of synthetic media and activated carbon ensure higher degree of filtration efficiency
♦Low initial pressure drop
♦Optional chemical treated activated carbon for special targeted gas removal
Product Details
-
Low resistance
-
Low run cost
-
Light weight
-
Convenient installation and replacement
-
Long life-span
-
100% factory inspection
-
Good sealing
-
Super high efficiency
Specification
-
Activated carbon fiber / Carbon granule laminated fiber media /50/50 carbon & potassium blended laminated fiber media
-
Extruded aluminum / Galvanized steel / Sheet aluminum /Cardboard / Stainless steel
-
46 96 150 292
-
White latex or universal glue
-
>70% / 90%
-
50℃
-
Cardboard frame
Product Specification
| Model NO. | SizeWxHxD(mm) | Air Flow(m3/h) | Media Area(m2) | Velocity(m/s) |
|---|---|---|---|---|
| K45-C-01 | 287×287×46 | 250 | 0.20 | 0.84 |
| K45-C-02 | 594×287×46 | 500 | 0.39 | 0.81 |
| K45-C-03 | 594×490×46 | 850 | 0.57 | 0.80 |
| K45-C-04 | 594×594×46 | 1000 | 0.80 | 0.79 |
| K45-C-05 | 287×287×96 | 350 | 0.29 | 1.18 |
| K45-C-06 | 594×287×96 | 700 | 0.57 | 1.14 |
