HEPA Filter Box

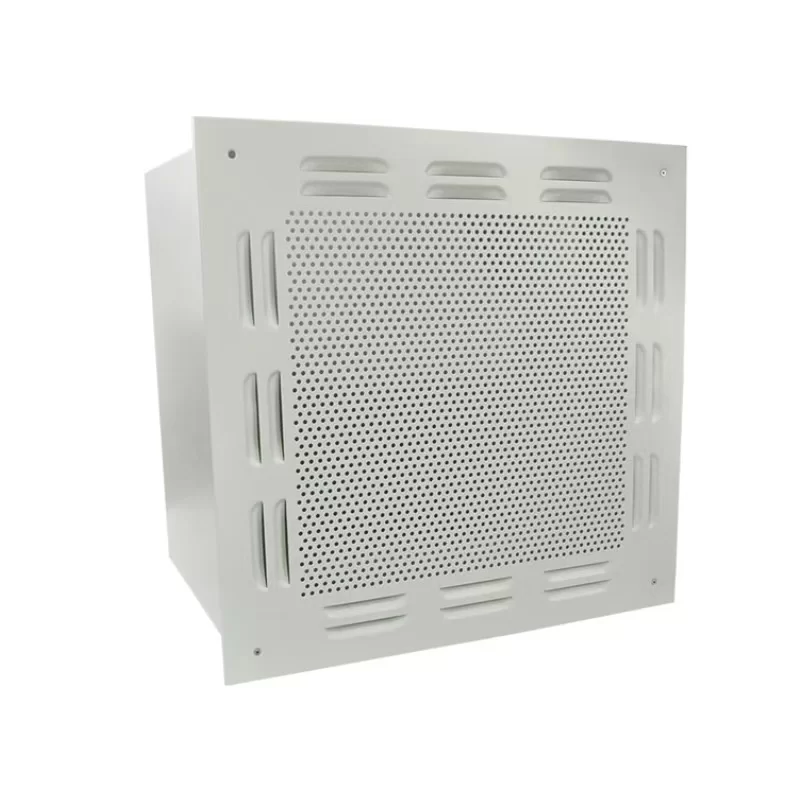

General HEPA Box KLC-HU
HEPA box is a special and ideal terminal HEPA filter device for clean rooms class 100, class 1000 and class 10,000 clean air-conditioning systems, mainly composed of static pressure box, diffuser, HEPA filter, flanger and damper. Suitable for non-uniform flow cleanrooms of various levels and with various roof structures.
Specification
-
KLC HEPA box adopts newest advanced technolody from Japan which makes the airflow's distribution more seasonable. Wide option of diffuser to provide different kinds of air distrbution to suits different needs from clients.
-
According to the principle of aerodynamics, designers carefully designed the diffuser plate to ensure that the air jet speed to prevent the product from create eddy current.
-
The flange has the square and round style, compact structure,reliable sealing, and insulation cotton can be provided.
-

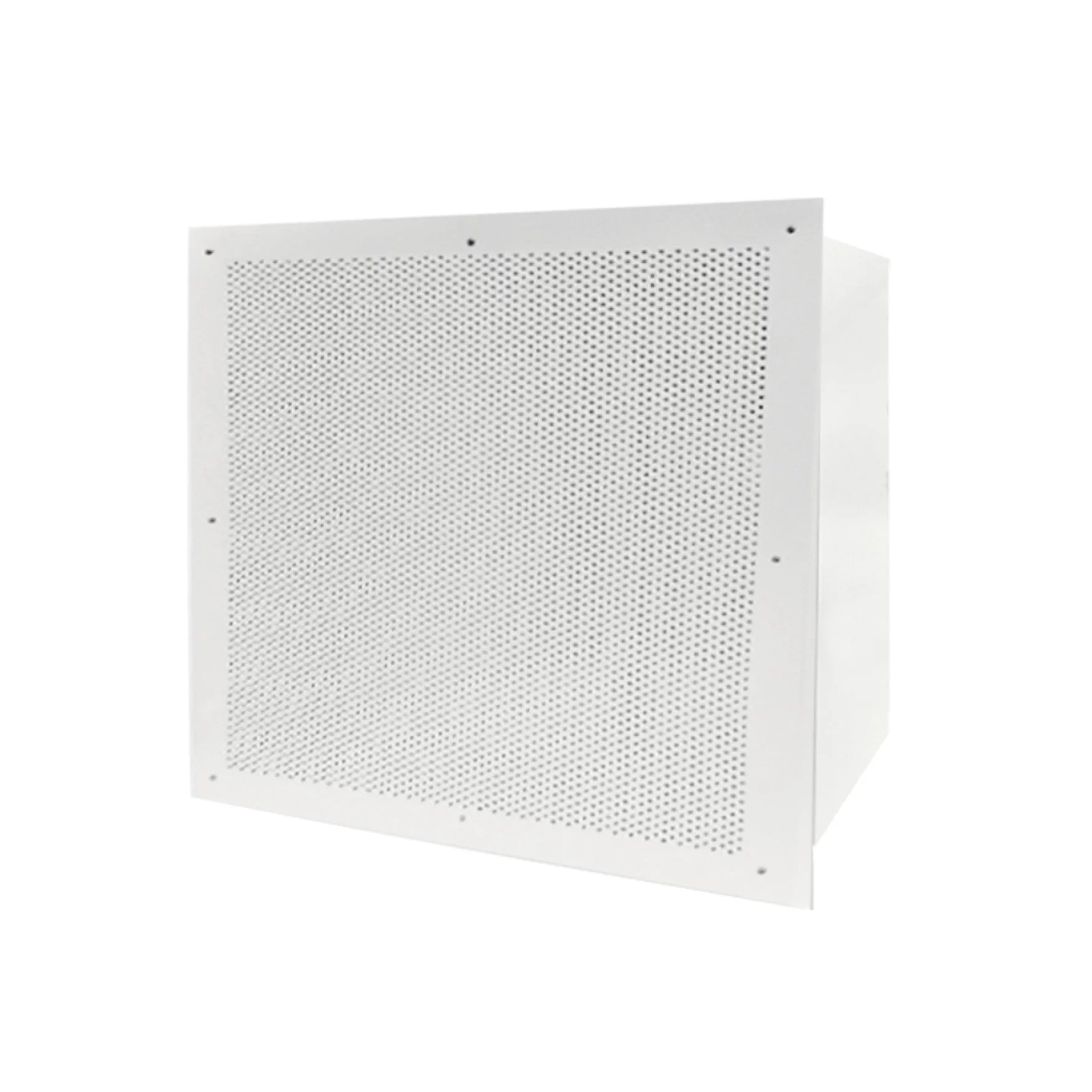

The general HEPA box adopts endless joint PU foam gasket and DOP HEPA box adopts the gel seal HEPA filter with better sealing, which offer good air tightness.
-
HEPA box with DOP monitoring port and injection port can be tested after installed in time, it can check the leakage of gasket, frame and glass fiber media.
Product Specification
| Item | General HEPA Box | ||
|---|---|---|---|
| Model | HU-500 | HU-1000 | HU-1500 |
| Material | Cabinet / diffuser / damper: Powder coated steel / Stainless steel | ||
Cabinet size (WxLxHmm) | 390x390x380 | 554x554x380 | 680x680x380 |
Flange size (AxBmm) | 200x200 | 320x200 | 400x200 |
Air flow (m³/h) | 500 | 1000 | 1500 |
Filter size (WxHxDmm) | 320x320x96 | 484x484x96 | 610x610x96 |
Filter model | Mini-pleat HEPA filter | ||
| Filter efficiency | 99.99%@0.3µm | ||
