Pleated Filter

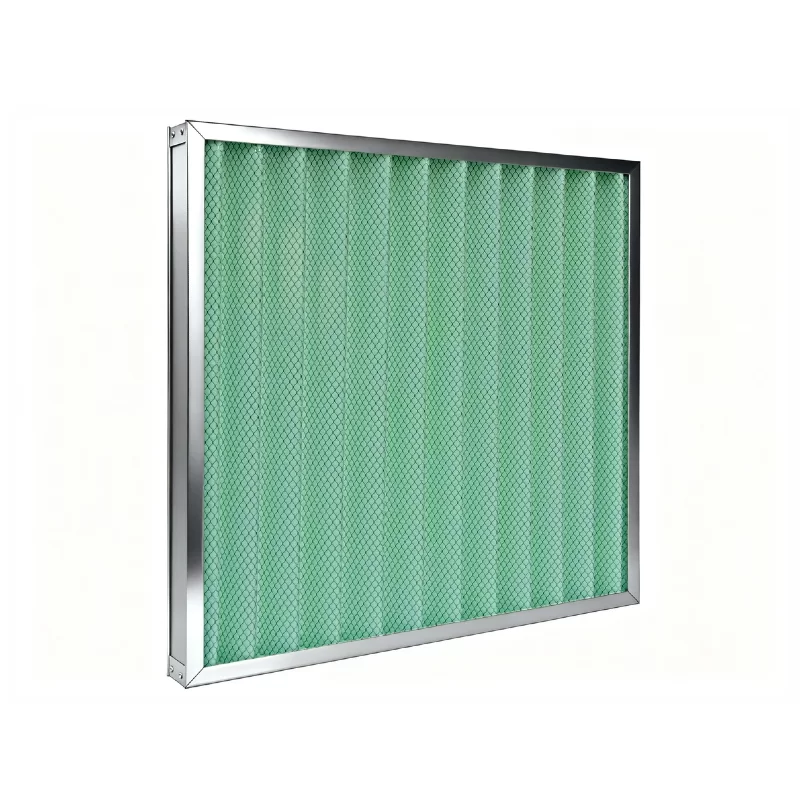

Pleated Pre-Filter K41-A
Surface mesh used by rust treatment process, good appearance and durable
♦ Save space
♦ Washable (metal frame)
♦ Simple structure, wide range of applications, and high cost performance ratio
♦ Large media area
♦ Large dust holding capacity
♦ Long life-span
♦ Not easily deformation
♦ 100% Factory inspection
♦ Save space
♦ Washable (metal frame)
♦ Simple structure, wide range of applications, and high cost performance ratio
♦ Large media area
♦ Large dust holding capacity
♦ Long life-span
♦ Not easily deformation
♦ 100% Factory inspection
Product Details
-
Low run cost
-
Light weight
-
Long life-span
-
100% factory inspection
Specification
-
Polyester fiber
-
Extruded aluminum / Galvanized / Aluminum sheet / Cardboard / Stainless steel
-
White latex or universal glue
-
21 25 46 50 69 80 90 96
-
50℃
-
Cardboard frame-70% Other frame material-100%
Product Specification
| Model NO. | Actual SizeHxWxD(mm) | Air Flow(m3/h) | Media Area(m2) | Velocity(m/s) |
|---|---|---|---|---|
| K41-A-001 | 594×287×21 | 750 | 0.28 | 1.22 |
| K41-A-002 | 594×287×21 | 800 | 0.29 | 1.28 |
| K41-A-003 | 287×287×46 | 550 | 0.2 | 1.85 |
| K41-A-004 | 594×287×46 | 1050 | 0.39 | 1.71 |
| K41-A-005 | 495×495×46 | 1500 | 0.58 | 1.7 |
| K41-A-006 | 594×594×46 | 2150 | 0.8 | 1.69 |
