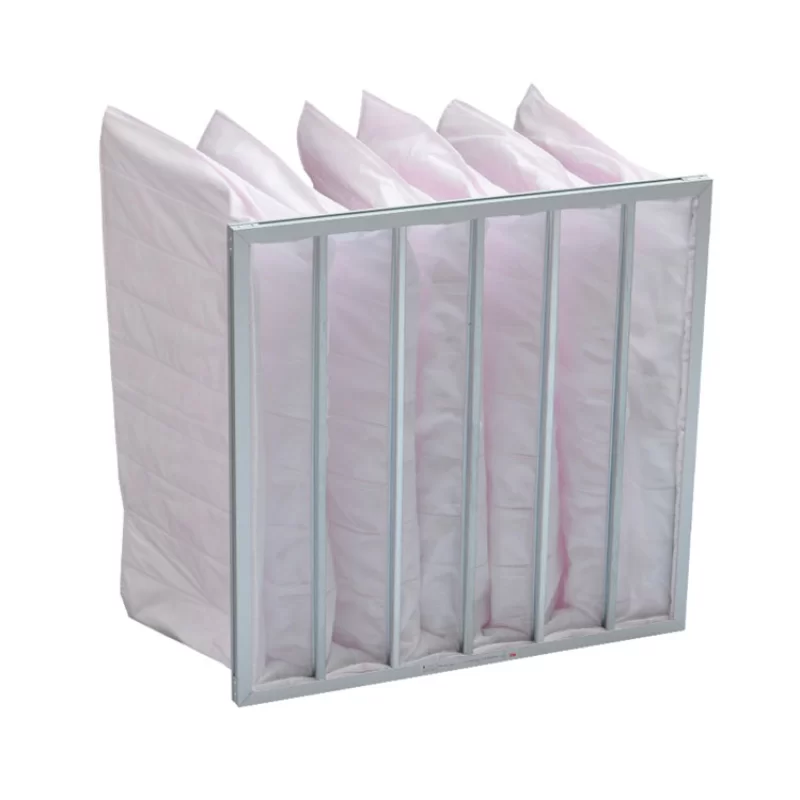

Pocket Filter
Rigid Bag Filter KP8-R
♦Using thermally bonded technology
♦High dust-holding capacity
♦The media are progressively structured, long service life.
♦Rhombic and small pockets inside, reduce power consumption,
♦and make full use of the filter media.
♦High dust-holding capacity
♦The media are progressively structured, long service life.
♦Rhombic and small pockets inside, reduce power consumption,
♦and make full use of the filter media.
Product Details
-
Low resistance
-
Low run cost
-
Light weight
-
Convenient installation and replacement
-
Long life-span
-
100% factory inspection
-
Good sealing
-
Super high efficiency
Specification
-
Micro glass fiber
-
Ultrasonic bag
-
Extruded aluminum / Galvainzed / Plastic
-
21 25
-
70℃
-
100%
Product Specification
| Model NO. | Actual SizeHxWxD(mm) | Air Flow(m3/h) | Media AreaFlow (m2) | Filter grade (EN779) |
|---|---|---|---|---|
| KP8-R-001 | 592×592×600 | 4250 | 4.4 | M5 |
| KP8-R-002 | 592×592×600 | 2200 | 2.2 | M5 |
| KP8-R-003 | 592×592×600 | 4250 | 5.8 | M5 |
| KP8-R-004 | 592×592×600 | 2200 | 2.9 | M5 |
| KP8-R-005 | 592×592×600 | 4250 | 5.8 | M6 |
| KP8-R-006 | 592×592×600 | 2100 | 2.9 | M6 |
