V Bank Filter

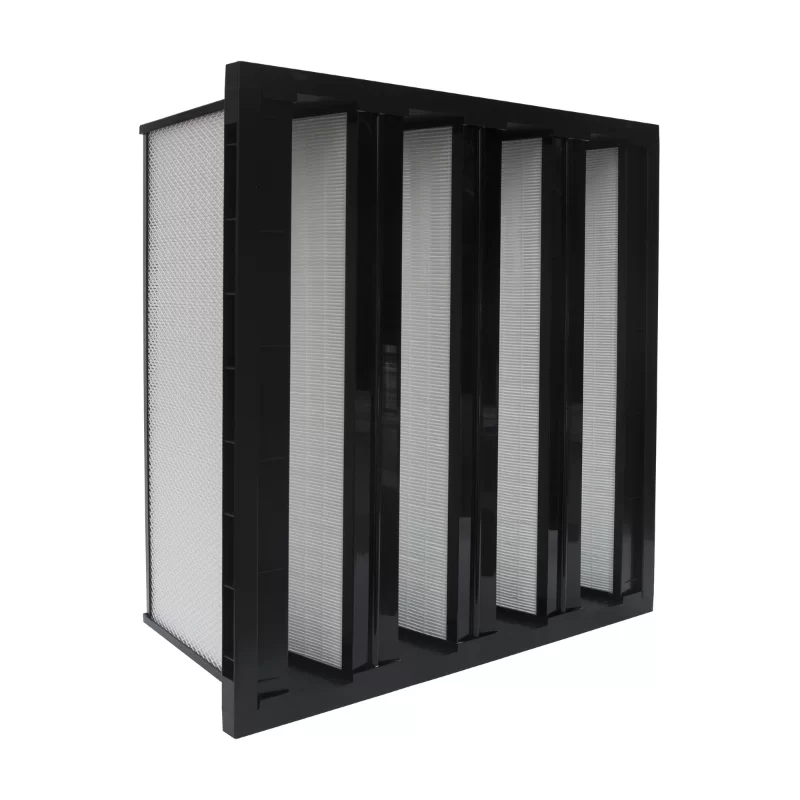

V-Bank Filter KV-B
♦Good sealing
♦Able to sustain big air volume
♦Big filtration area, air flow, high efficiency
♦ Special V type structure, reduce structural resistance
♦Available with installation flange, more convenience to install
♦100% tested before delivery
♦Able to sustain big air volume
♦Big filtration area, air flow, high efficiency
♦ Special V type structure, reduce structural resistance
♦Available with installation flange, more convenience to install
♦100% tested before delivery
Product Details
-
Low resistance
-
Low run cost
-
Light weight
-
Convenient installation and replacement
-
Long life-span
-
100% factory inspection
-
Good sealing
-
Super high efficiency
Specification
-
Micro glass fiber / Synthetic fiber
-
Sheet Aluminum / Galvanized / Plastic
-
Two-component polyurethane glue
-
EVA / EPDM
-
Hot melt bead
-
292 400
-
70℃
-
100%
Product Specification
| Model NO. | Actual SizeHxWxD(mm) | Air Flow(m3/h) | Media AreaFlow (m2) | Velocity(m/s) |
|---|---|---|---|---|
| KV-B-001 | 287×287×292 | 550 | 3.24 | 1.85 |
| KV-B-002 | 287×592×292 | 1200 | 7.28 | 1.96 |
| KV-B-003 | 592×287×292 | 1000 | 6.49 | 1.63 |
| KV-B-004 | 592×490×292 | 1900 | 11.82 | 1.81 |
| KV-B-005 | 592×592×292 | 2400 | 14.55 | 1.89 |
| KV-B-006 | 592×287×292 | 1000 | 6.49 | 1.63 |
