Weighing Booth

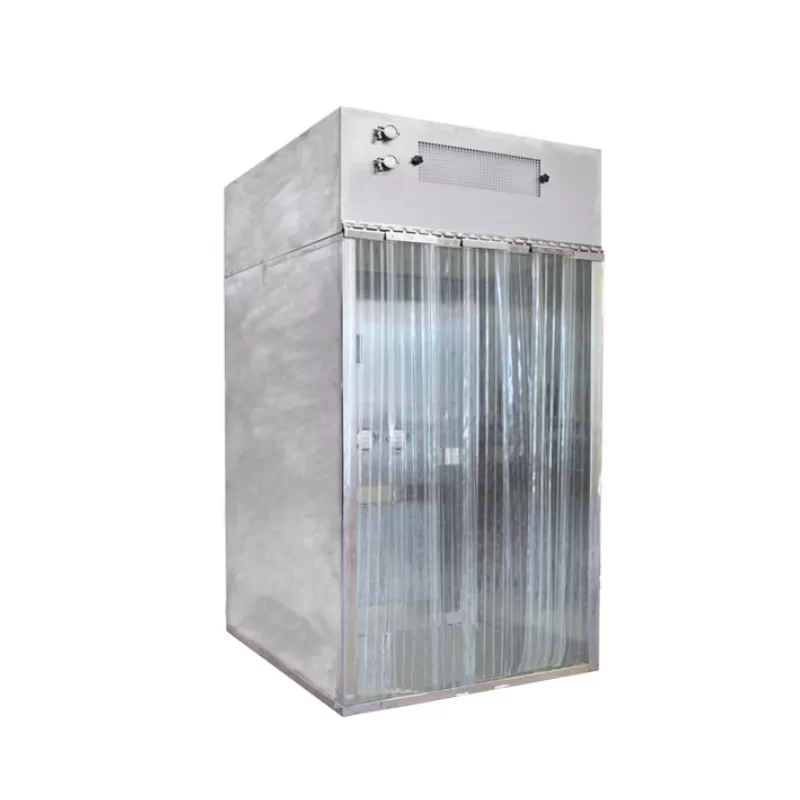

Weighing Booth KLC-WR
The weighing room, also known as negative pressure room, dispensing booth, sampling room, is a dedicated local decontamination unit that conforms to the latest version of GMP for the production of sterile formulation, widely used in pharmaceutical, biological research and scientific experiment etc. It is widely used in pharmaceuticals, biological research, and scientific experiments.
Specification
-
It provides a vertical one-way air flow,80%-90%of clean air is circulated in the work area,10%-20 %discharge to generate negative pressure in the work area,prevent dust from overflowing,and prevent cross-contamination,which is used to ensure a high cleanliness environment in the work area.
-
Uniform air flow supply clean vertical unidirection airflow, creat a virtuous circle of air recirculation, automatically controlled by the intelligent PLC system, constent keeping 0.45m/s air flow.
-
Weighing room provides a self-circulating negative pressure clean microenvironment and a negative pressure operating area without leakage. Effectively remove harmful dust or infectious virus from production or biological operations.
-
Using PLC and touch screen control, intelligent and fast human computer interaction interface.
Product Specification
| Item | Weighting Booth /Negative pressure booth /Dispensing booth /Sampling booth | |
|---|---|---|
| Model | WR-1 | WR-2 |
| Module size (WxLxHmm) | 1300x1400x2500 | 2400x1900x2500 |
Module size (WxLxHmm) | 1200x800x2000 | 2300x1300x2000 |
Air flow (m³/h) | 1550 | 4850 |
Fan power (W) | 910 | 1820 |
Average air velocity (m/s) | 0.45±20% | 484x484x96 |
Clean Class | Class A, ISO5 (Class 100) | |
| Noise dB (1m below HEPA filter) | ＜65 | |
| Illumination | ≥300 Lux | |
| HEPA Filter | G4+F8+H14 | |
| Control Method | PLC+HMI | |
| DP gauge | 3sets, for each filter | |
| DOP test ports | 1set for filter integrity test | |
| Accessories | Wind speed sensor, LED light, water proof sockets | |
| Power Supply | AC 380V | |
